Sperm concentration meter for dog and horse breeders
Kiba Density Sperm Concentration Meter

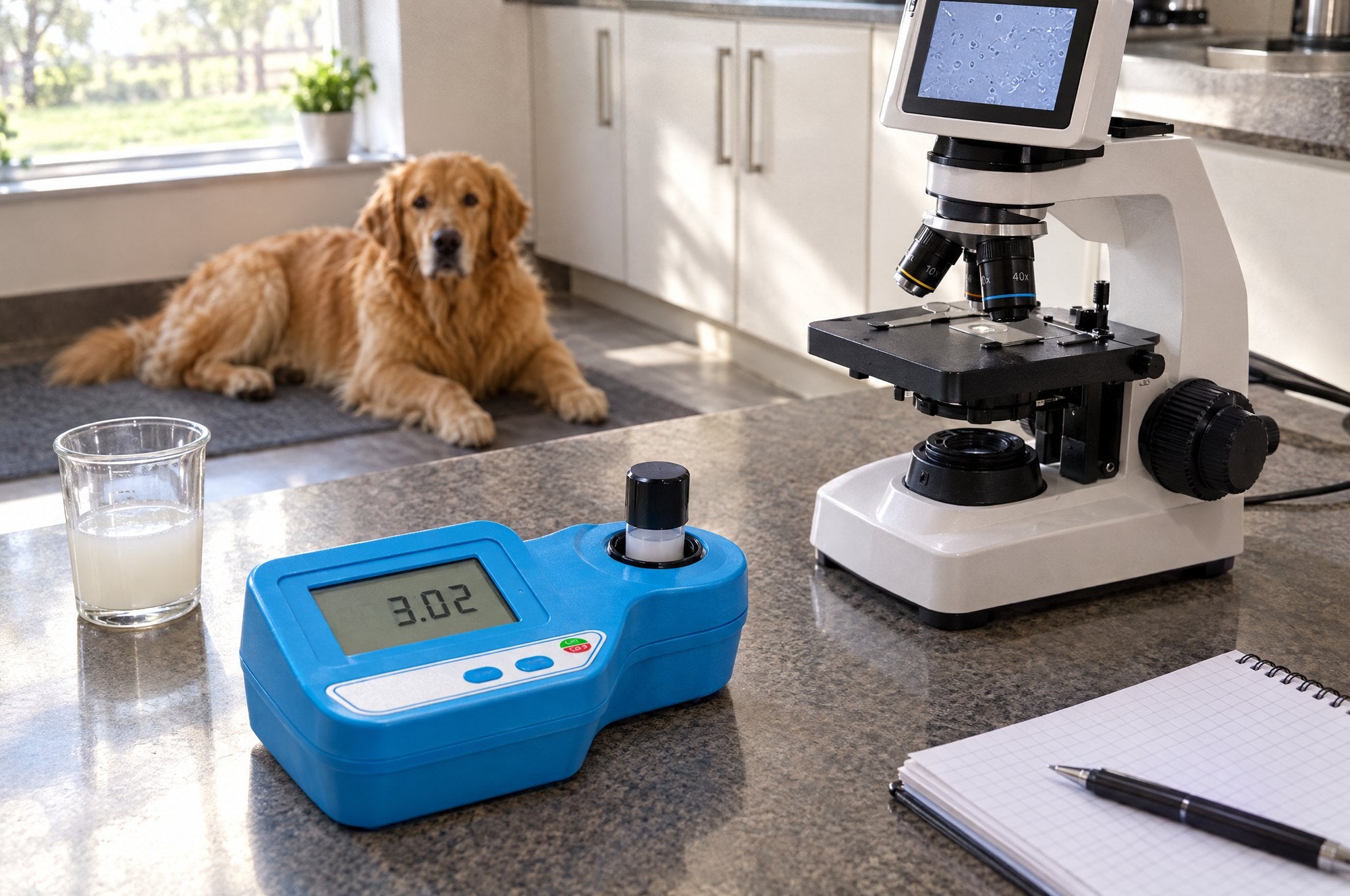

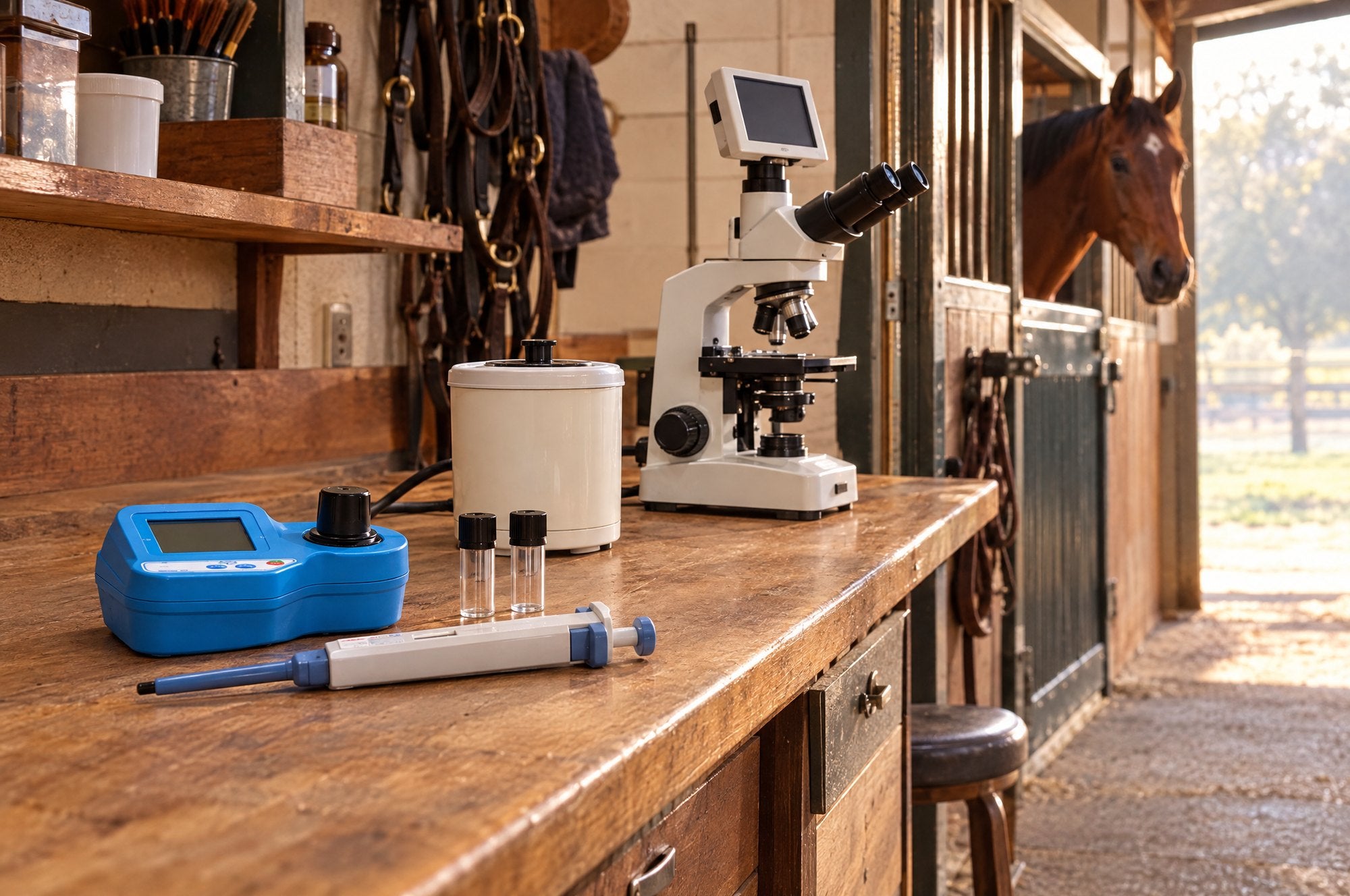

Two cuvettes of extender, 0.4 ml of the collection, two button presses: a concentration reading on the screen, on the kitchen bench or in the tack room.
Free tracked shipping, delivered in 5 to 10 business days.

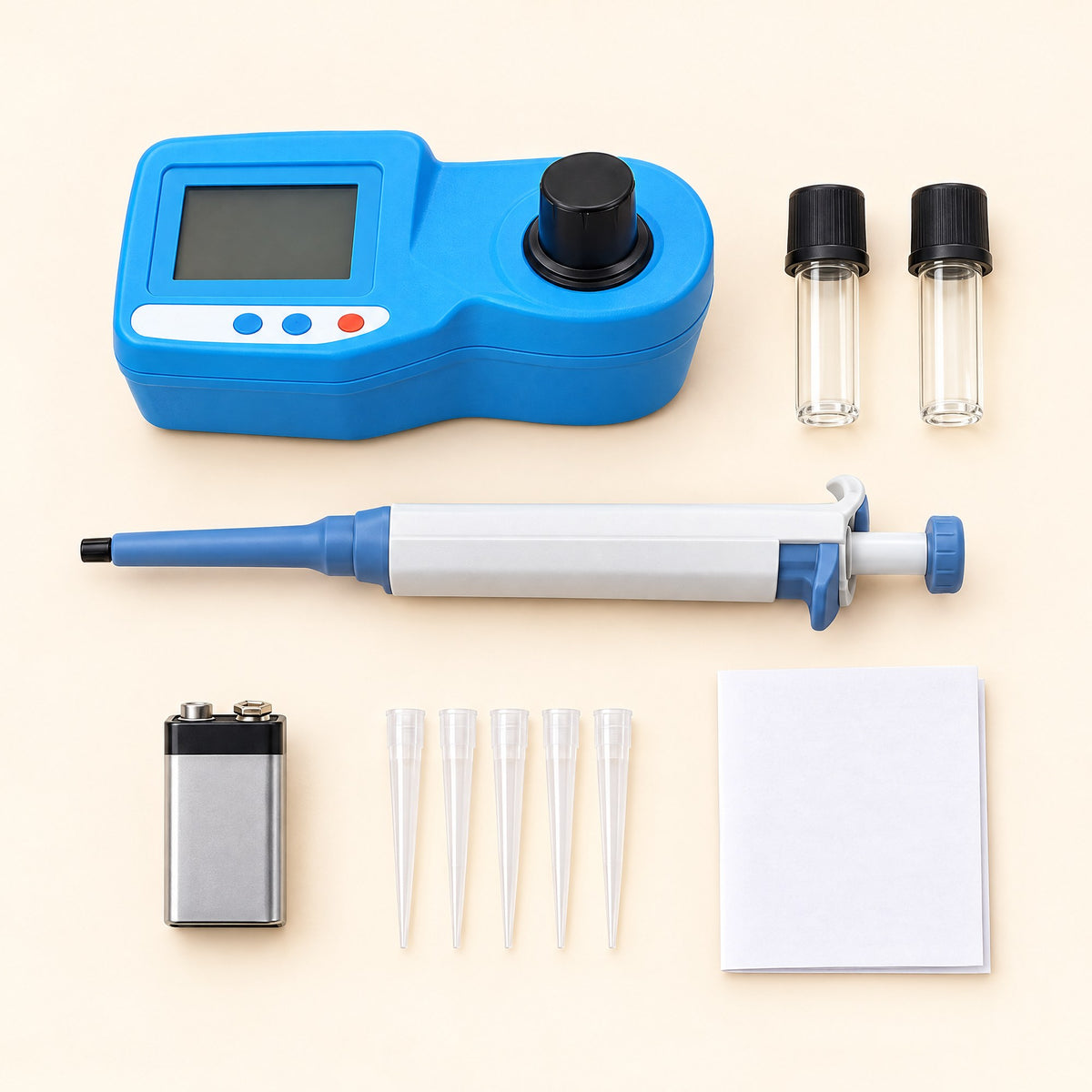

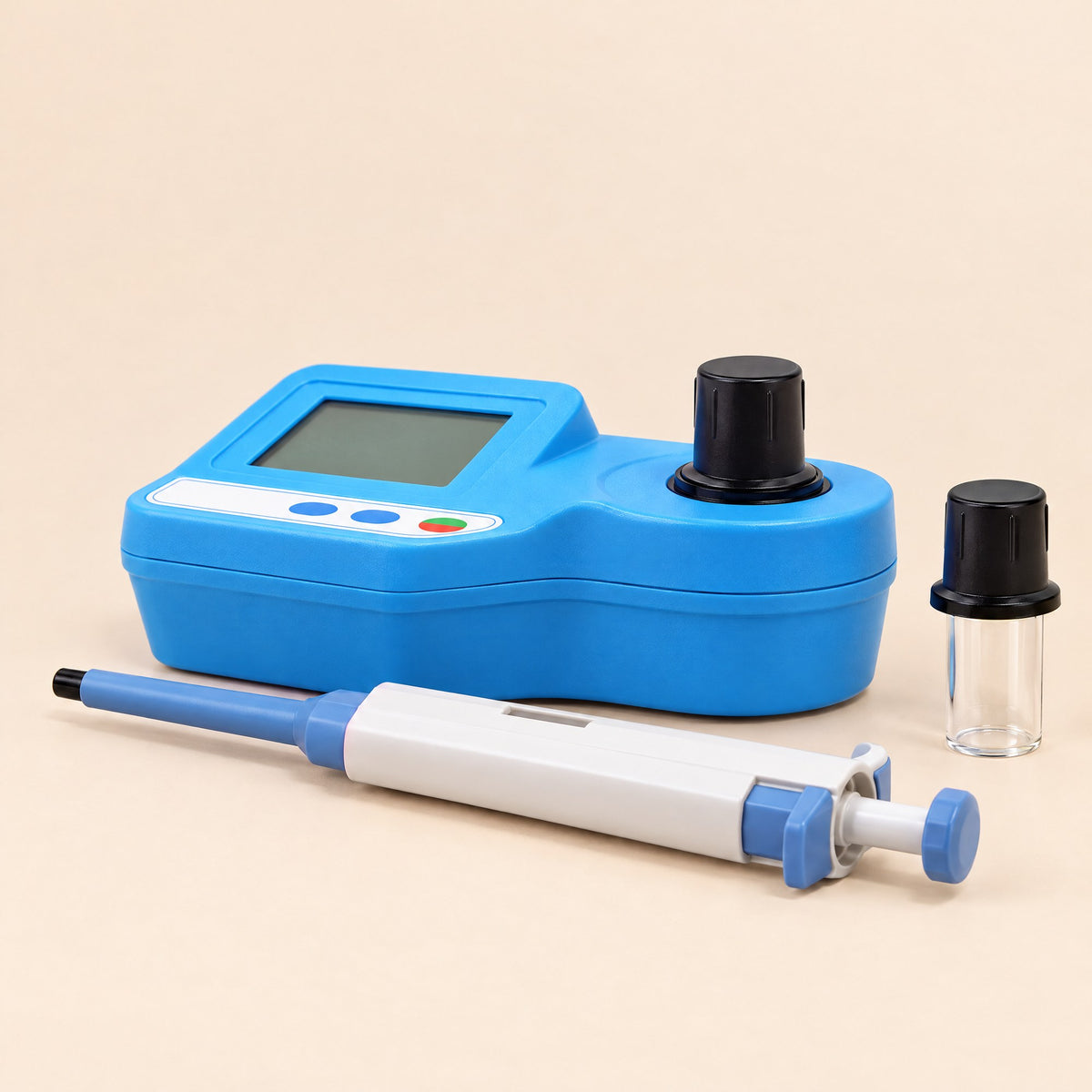

What’s in the box
| Kiba Density meter | 1× |
| Glass cuvettes, 10 ml, with caps | 2× |
| Micropipette, 100 to 1,000 µl, with tips | 1× |
| Instruction leaflet | 1× |
- A number, not a guess. A collection that looks thick can be thin and a thin one can be fine. Kiba Density reads the concentration in under a minute, so you know how many doses a collection makes before you split it.
- Two cuvettes, two buttons. Extender in both glass cuvettes, 0.4 ml of raw semen in one. ZERO on the plain one, READ on the sample. The screen shows hundred-millions per ml: 2.14 is 214 million.
- Nothing to buy afterwards. The cuvettes are glass and wash out; there are no disposable cells, strips or reagents. The only thing it uses is the extender you already have.
- Runs on one 9 V battery. More than 200 hours on a single 9 V battery, the maker says, and it switches itself off after ten minutes idle. 290 g, so it lives in the tack room or on the kitchen bench.
Kiba Density is a breeding tool for experienced hands. It is not a laboratory semen analysis and not a veterinary device. It reads concentration; motility and morphology are judged under Kiba Lens or by your vet.
Secure checkout. Visa, Mastercard, Amex, Shop Pay, Apple Pay, Google Pay.
Before you split a collection
How many doses is it?
Under the Lens you see whether they move. What you cannot see is how many there are, and the number decides whether a collection is one dose or four, whether a chilled shipment is worth sending and whether a stud is where he was last season. Kiba Density gives you that number at the bench in under a minute.
How it is used
From the collection to a reading
Extender, then sample

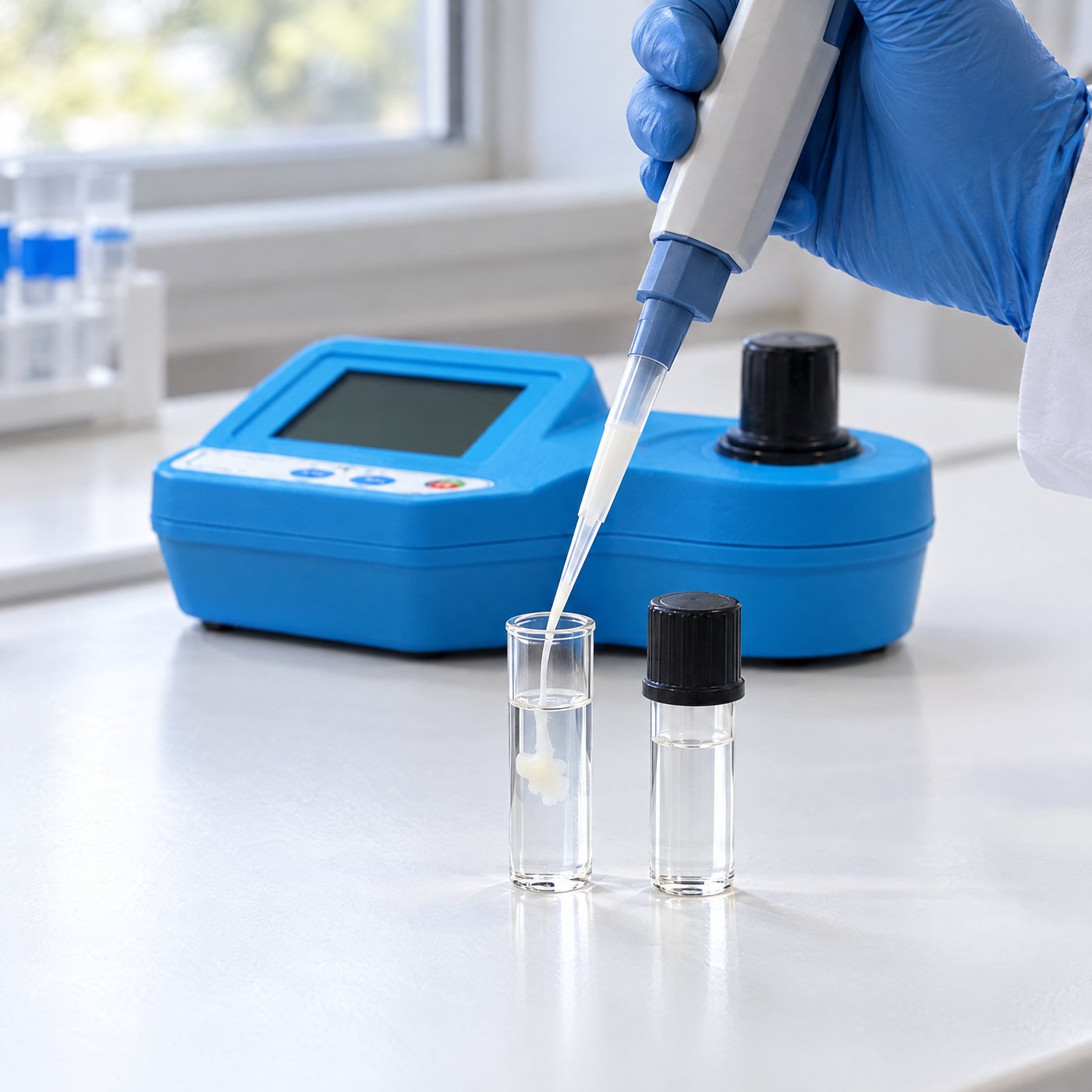

Put 10 ml of your extender into each of the two glass cuvettes. With the pipette, add 0.4 ml of the raw collection to one of them, cap it and turn it over gently a few times.
Plain cuvette, ZERO

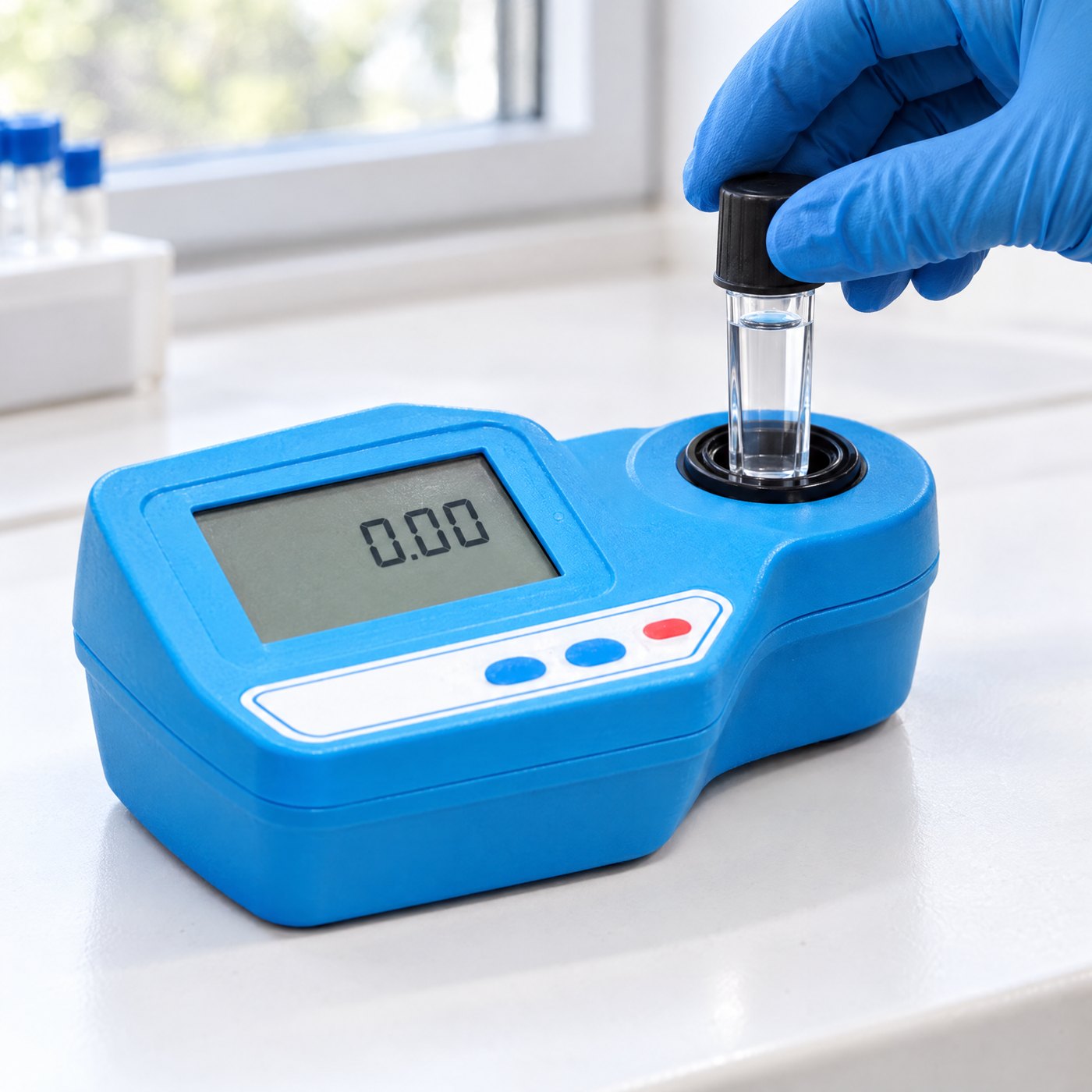

Switch on, lower the plain cuvette into the well with its cap on and press ZERO. The screen shows 0.00: the meter has read your extender and taken it out of the result.

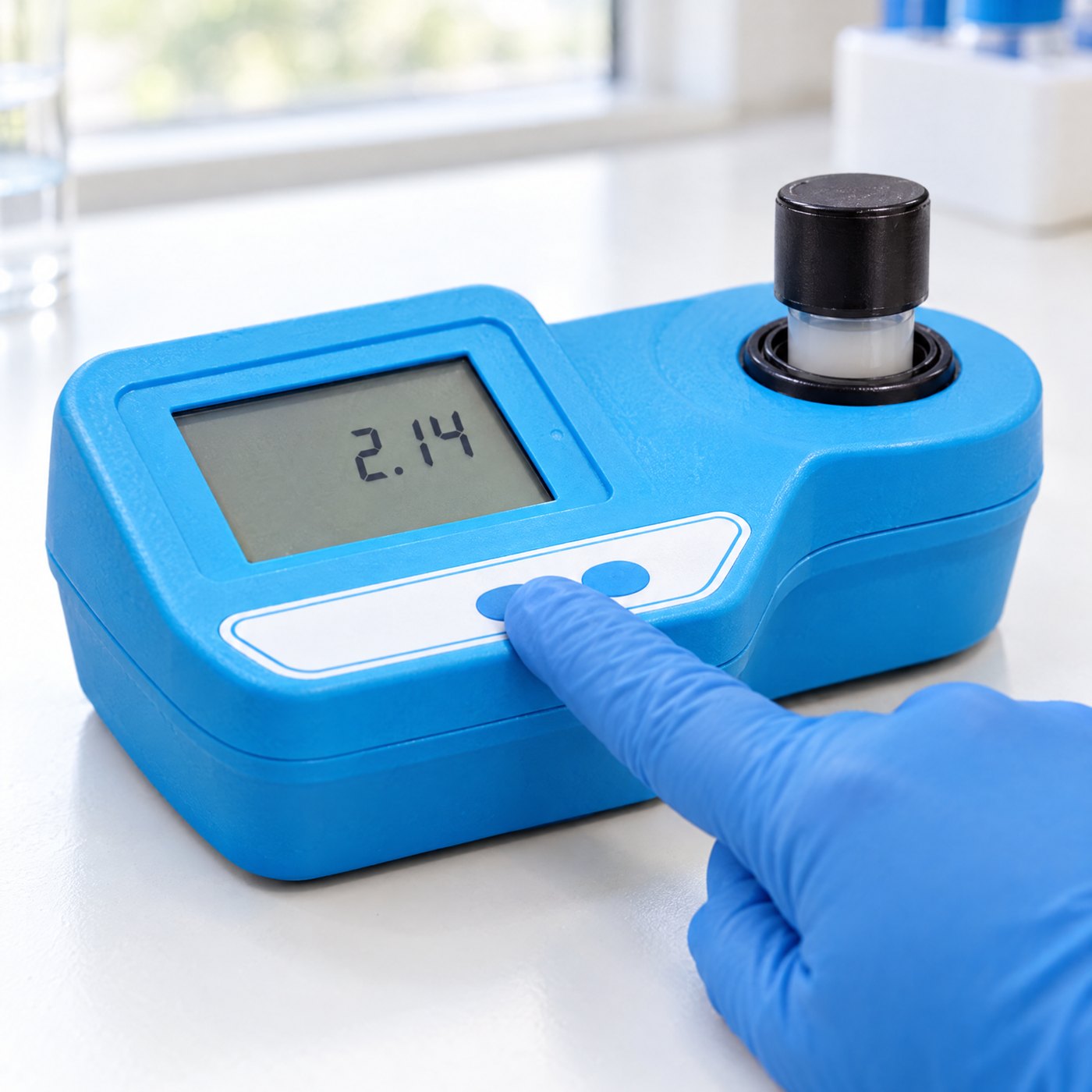

Sample cuvette, READ

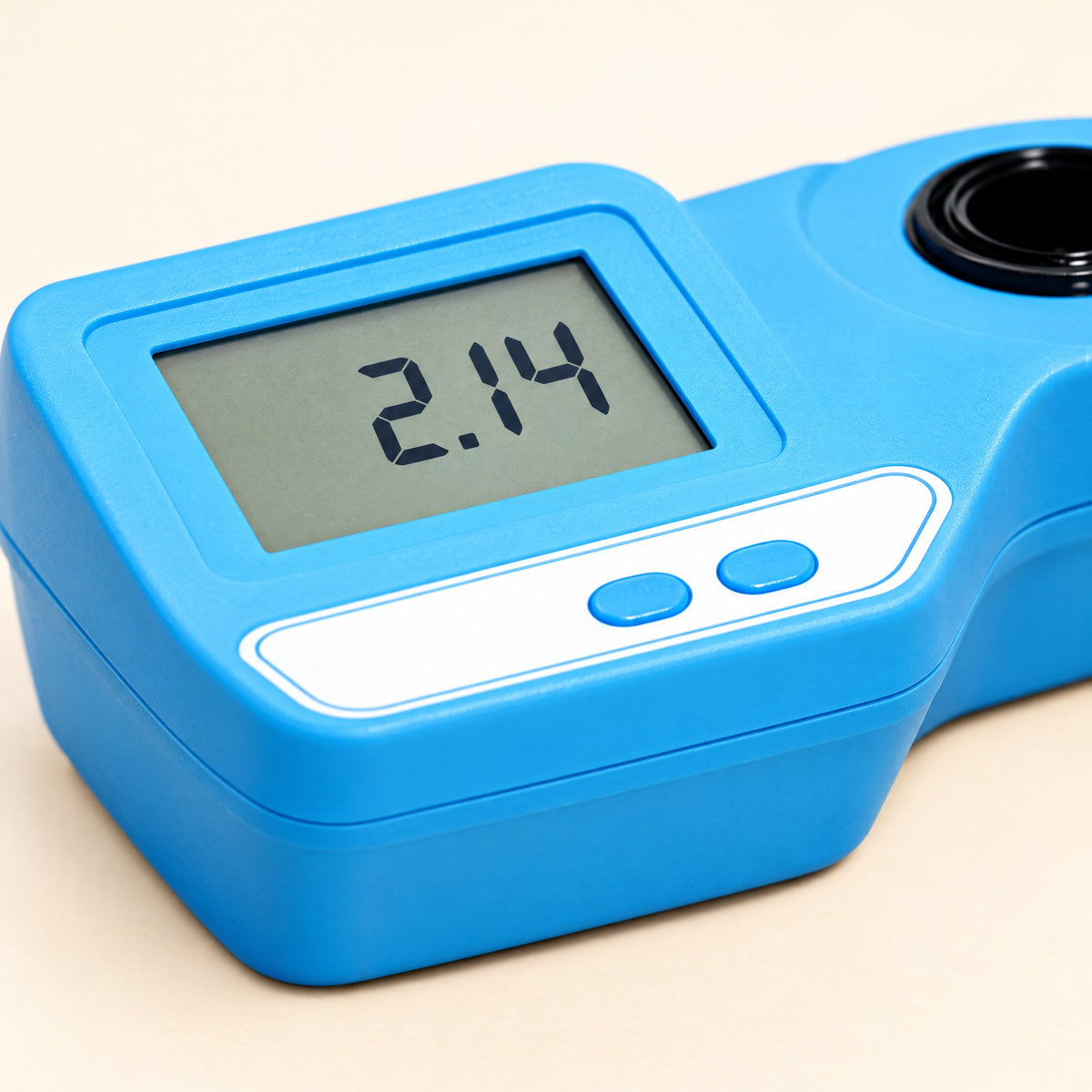

Swap in the sample cuvette and press READ. The screen shows the concentration in hundred-millions per ml. 2.14 on the screen is 214 million sperm per millilitre of the raw collection.

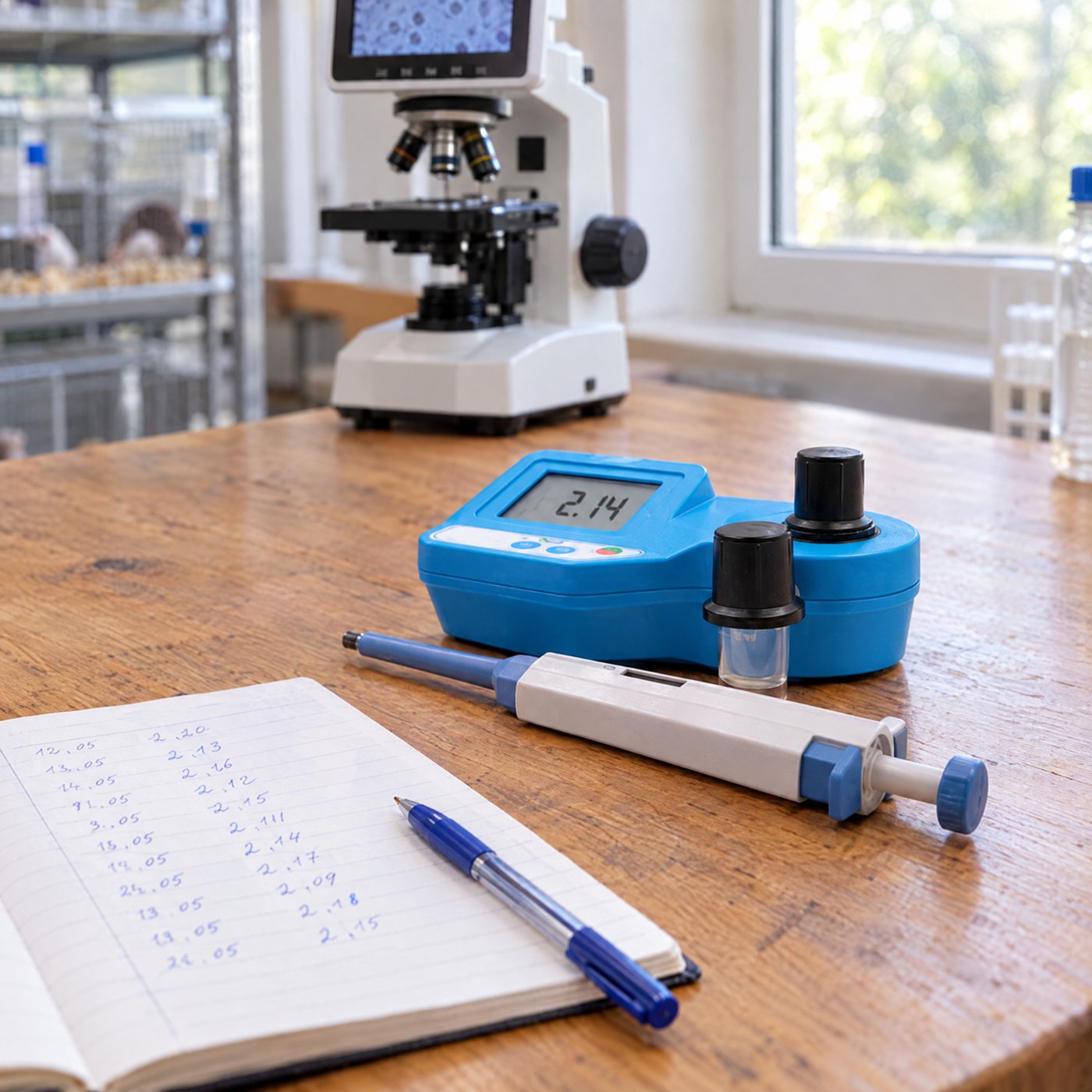

Write it down
Concentration times volume is the total in the collection; divide by the dose you use and that is how many doses it makes. Keep the readings in a notebook per stud: the trend from season to season is the most useful number of all.
Calibration, said plainly
Made for boars, read for your stud.
The maker calibrates Kiba Density on boar semen and sells it that way in Europe and Asia. Dog and stallion semen scatter light the same way at 470 nm, but the maker publishes no separate curve for them, so use it as we do: the same meter, the same extender, the same dilution every time, and compare a stud with himself from collection to collection. For an absolute count, put a drop on Kiba Count under Kiba Lens.
- Same extender, same dilution, every time
- Compare a stud with himself
- Absolute count on Kiba Count
On the bench with the others
Lens shows, Density counts.
Kiba Lens shows you movement on its screen, Kiba Count gives you a grid count by eye, and Kiba Density gives you a concentration reading in under a minute without counting anything. Together they are the three questions a breeder asks of a collection: are they moving, how many are there, and is he where he was.
- Reads in under a minute
- No counting, no grid
- Glass cuvettes, washed and reused
Side by side
A reading, or a guess by eye
| What matters | Kiba Density | Judging the cup |
|---|---|---|
| Concentration | A reading in hundred-millions per ml | Thick-looking or thin-looking |
| Time | Under a minute, two buttons | Ten minutes counting a grid |
| Consumables | None: glass cuvettes and your extender | Strips or disposable cells |
| Doses per collection | Worked out from the reading | A guess |
The maker calibrates the meter on boar semen and rates it at 98 %. For dogs and horses treat the reading as the same stud’s number from collection to collection, and confirm an absolute count with Kiba Count. Not a laboratory analysis, not a veterinary device.
Our promise
Every collection, counted.
Questions
Good to know before you order.
Something we haven’t covered? Email info@kibaclub.com and a person replies within 24 hours.
Who is it for?
How does it work?
What do the numbers mean?
Is it calibrated for dogs and horses?
What extender do I use?
Does it need consumables?
Does it tell me whether they are moving?
How is it powered?
Is the leaflet in English?
Will it guarantee a pregnancy?
How long does delivery take?
What if it is not right for us?
The details
Technical details
Full specification
| Reads | Sperm concentration, 0 to 5 hundred-million per ml (0 to 500 million per ml) |
|---|---|
| Method | Photometer, 470 nm light source; blank on your own extender |
| Sample | 0.4 ml of raw semen into 10 ml of extender; second cuvette of plain extender as the blank |
| Precision | 98 %, the maker’s figure, on boar semen |
| Cuvettes | 2 × 10 ml glass, with caps; washed and reused, no consumables |
| Screen | LCD, about 2.4 inches |
| Buttons | ZERO, READ, ON/OFF |
| Power | One 9 V battery (6F22); more than 200 hours; auto-off after 10 minutes idle |
| Working conditions | 0 to 50 °C, below 95 % humidity |
| Size and weight | 192 × 103 × 67 mm, 290 g |
| In the box | Meter, 2 glass cuvettes with caps, micropipette with tips, instruction leaflet |
| Warranty | 1 year |
Kiba Density is a breeding tool for experienced users. It is not a laboratory semen analysis, not a veterinary medical device and does not guarantee conception. Calibration and precision are the maker’s figures for boar semen.
